FICTIONAL - NOT FOR OPERATIONAL USE

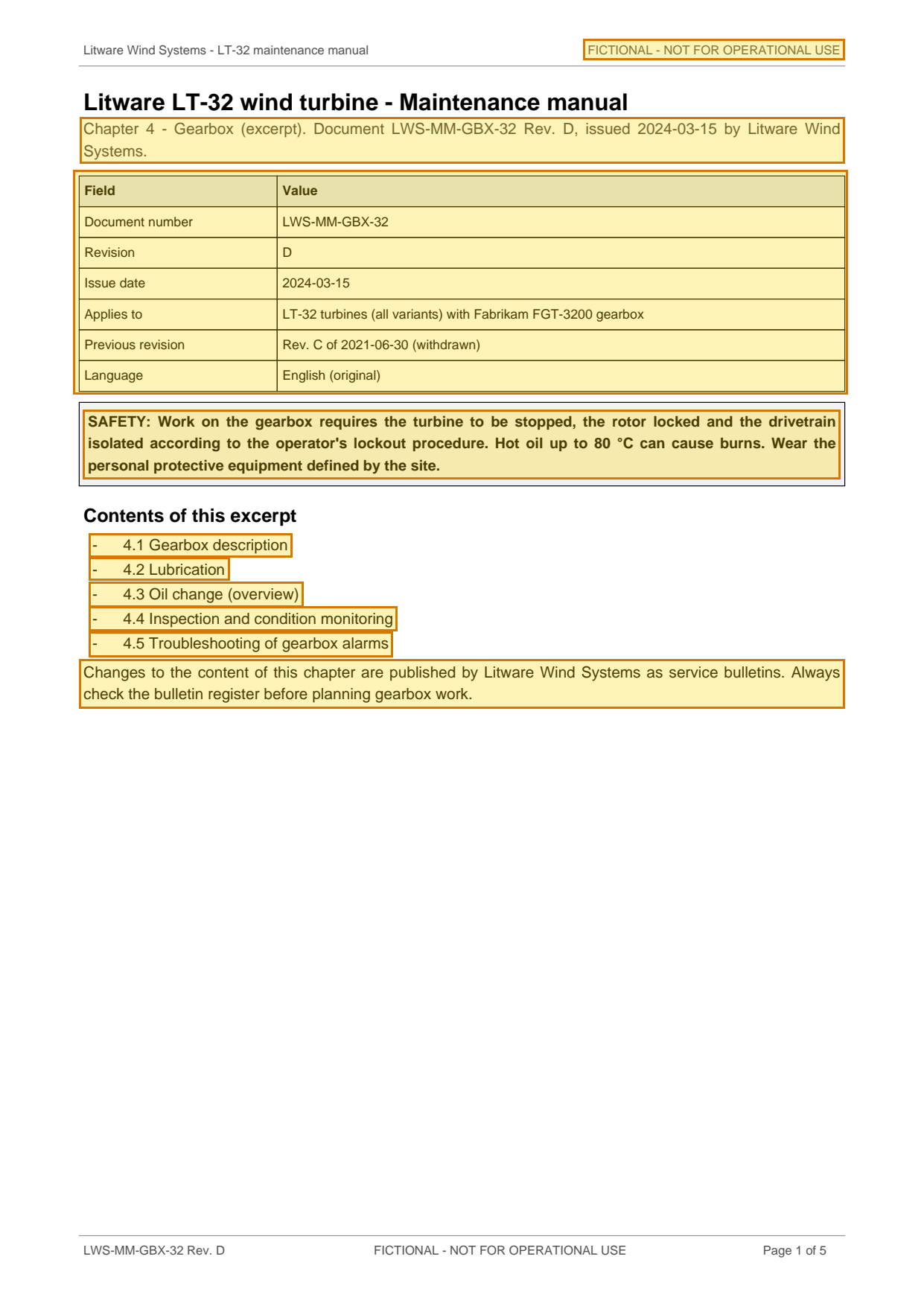

Chapter 4 - Gearbox (excerpt). Document LWS-MM-GBX-32 Rev. D, issued 2024-03-15 by Litware Wind Systems.
SAFETY: Work on the gearbox requires the turbine to be stopped, the rotor locked and the drivetrain isolated according to the operator's lockout procedure. Hot oil up to 80 °C can cause burns. Wear the personal protective equipment defined by the site.
- 4.1 Gearbox description
- 4.2 Lubrication
- 4.3 Oil change (overview)
- 4.4 Inspection and condition monitoring
- 4.5 Troubleshooting of gearbox alarms
Changes to the content of this chapter are published by Litware Wind Systems as service bulletins. Always check the bulletin register before planning gearbox work.
Table t01
| Row | Field | Value |
|---|---|---|
| 2 | Document number | LWS-MM-GBX-32 |
| 3 | Revision | D |
| 4 | Issue date | 2024-03-15 |
| 5 | Applies to | LT-32 turbines (all variants) with Fabrikam FGT-3200 gearbox |
| 6 | Previous revision | Rev. C of 2021-06-30 (withdrawn) |
| 7 | Language | English (original) |
