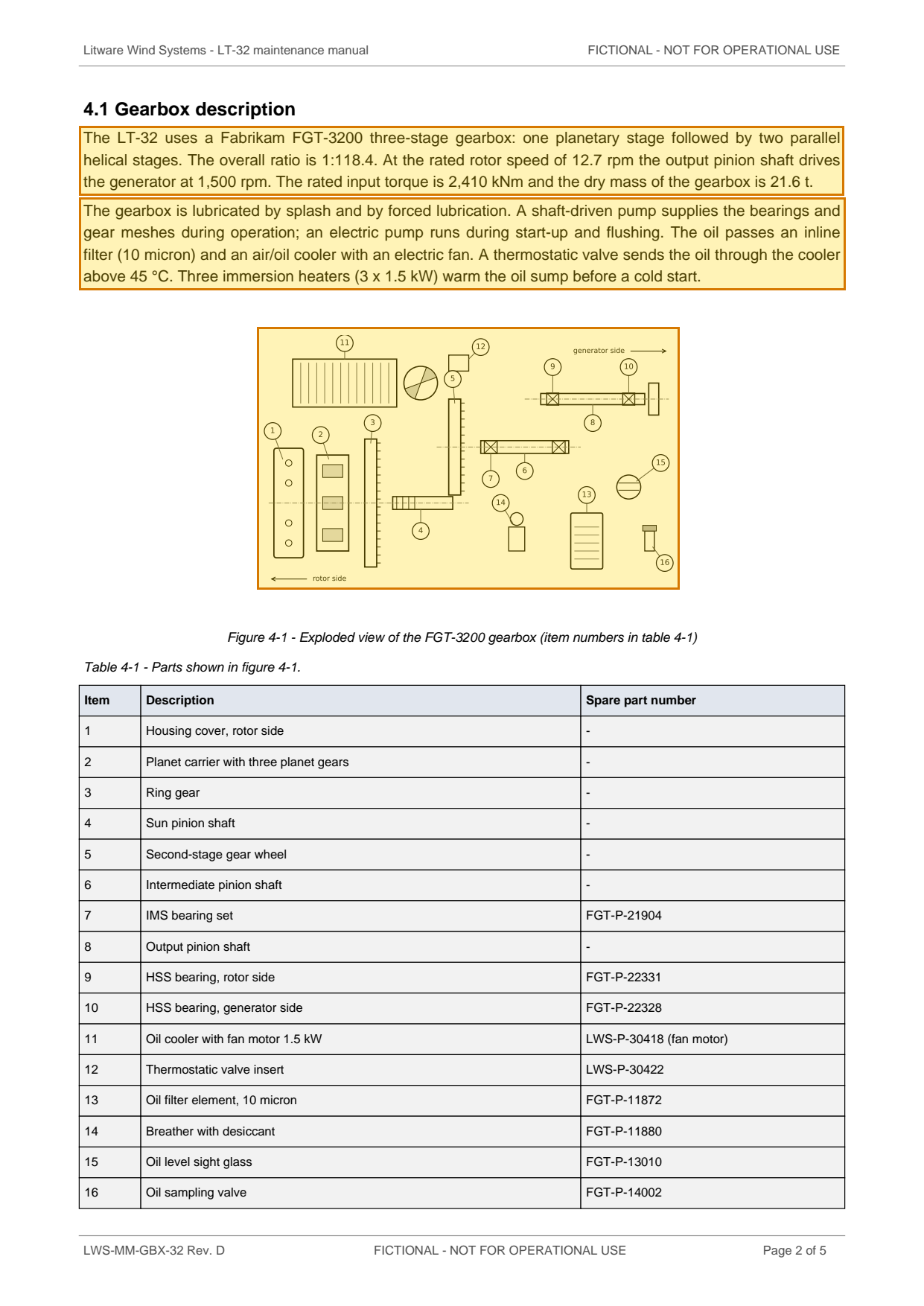

The LT-32 uses a Fabrikam FGT-3200 three-stage gearbox: one planetary stage followed by two parallel helical stages. The overall ratio is 1:118.4. At the rated rotor speed of 12.7 rpm the output pinion shaft drives the generator at 1,500 rpm. The rated input torque is 2,410 kNm and the dry mass of the gearbox is 21.6 t.
The gearbox is lubricated by splash and by forced lubrication. A shaft-driven pump supplies the bearings and gear meshes during operation; an electric pump runs during start-up and flushing. The oil passes an inline filter (10 micron) and an air/oil cooler with an electric fan. A thermostatic valve sends the oil through the cooler above 45 °C. Three immersion heaters (3 x 1.5 kW) warm the oil sump before a cold start.

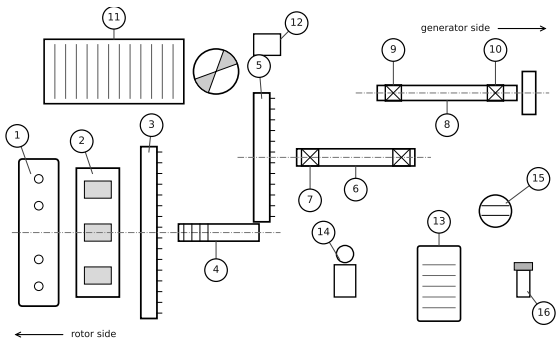

Figure f01
Caption: Figure 4-1 - Exploded view of the FGT-3200 gearbox (item numbers in table 4-1)
