Good or not good?
Level below MIN: do not restart, report to the O&M Supervisor (risk of alarm A2130).
Figure f02
Generated description — written by a model from the figure image; not verified against the source.

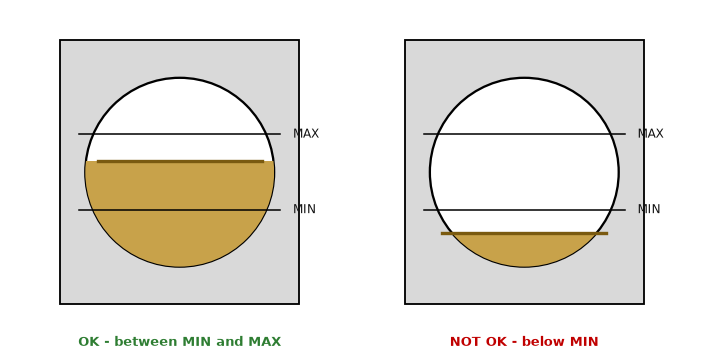

A two-panel diagram shows a circular tank or gauge in a gray box with horizontal MIN and MAX level lines labeled on the right. In the left panel, a gold liquid fill sits between the MIN and MAX lines and is labeled in green “OK - between MIN and MAX.” In the right panel, the gold liquid level is below the MIN line and is labeled in red “NOT OK - below MIN.”
