TAILSPIN HEAVY LIFT
OCR confidence: 0.99

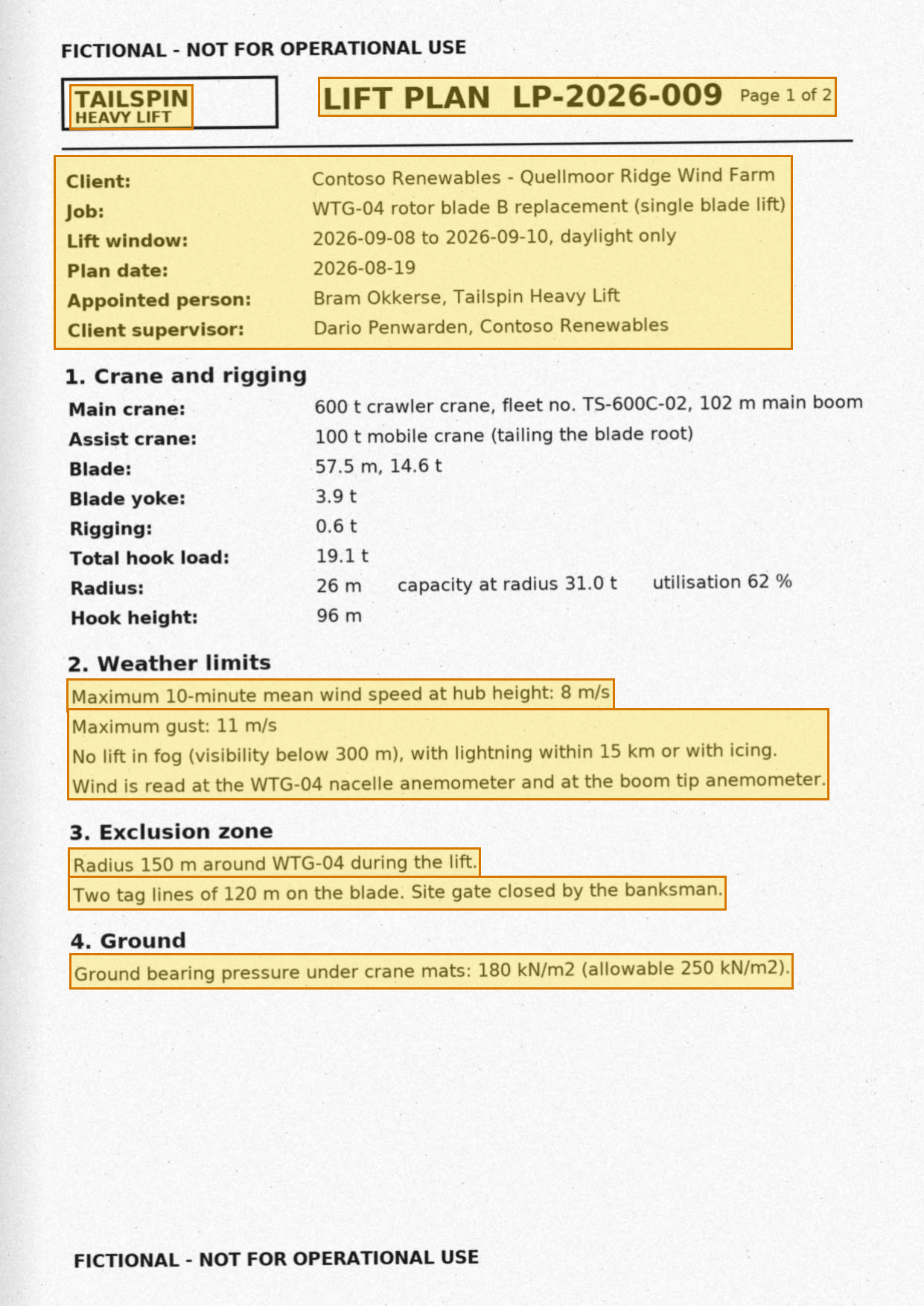

LIFT PLAN LP-2026-009 Page 1 of 2
OCR confidence: 0.97
Maximum 10-minute mean wind speed at hub height: 8 m/s
OCR confidence: 0.99

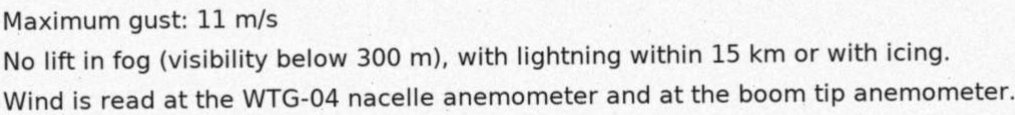

Maximum gust: 11 m/s No lift in fog (visibility below 300 m), with lightning within 15 km or with icing. Wind is read at the WTG-04 nacelle anemometer and at the boom tip anemometer.
OCR confidence: 0.92
Radius 150 m around WTG-04 during the lift.
OCR confidence: 0.99
Two tag lines of 120 m on the blade. Site gate closed by the banksman.
OCR confidence: 0.91
Ground bearing pressure under crane mats: 180 kN/m2 (allowable 250 kN/m2).
OCR confidence: 0.97
Table t01
| Row | Client: | Contoso Renewables - Quellmoor Ridge Wind Farm |
|---|---|---|
| 2 | Job: | WTG-04 rotor blade B replacement (single blade lift) |
| 3 | Lift window: | 2026-09-08 to 2026-09-10, daylight only |
| 4 | Plan date: | 2026-08-19 |
| 5 | Appointed person: | Bram Okkerse, Tailspin Heavy Lift |
| 6 | Client supervisor: | Dario Penwarden, Contoso Renewables |
